Vibration Chamber
BIA Climatic Vibration Chamber
Combined Environmental and Vibration Testing
The BIA Climatic Vibration Chamber combines temperature, humidity and vibration testing in one integrated system, allowing you to evaluate product reliability under realistic environmental and mechanical conditions.
We provide configurations for applications ranging from small automotive components to large battery packs, chassis assemblies and other heavy-duty specimens.
Standard Climatic Vibration Chamber
The standard chamber offers 900–2,900 L capacity, with temperature ranges from -70°C to +180°C, humidity from 10–98% RH, and customised temperature change rates of up to 20 K/min.
An automatic lifting mechanism allows fast connection to the vibration table, improving test setup efficiency.
Typical applications: motors, ECUs, automotive components, seats and other small-to-medium-sized products.

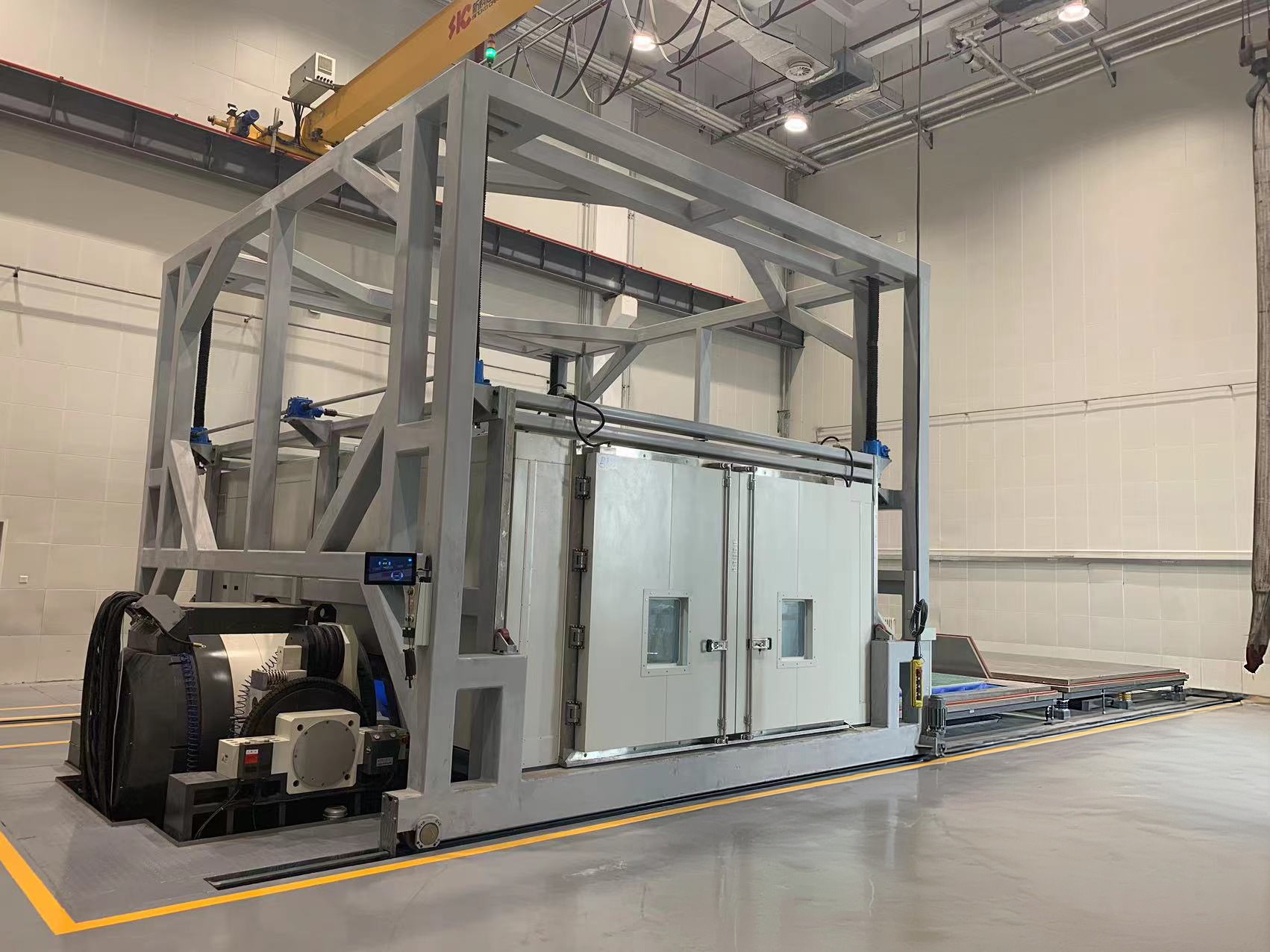

Large Customized Climatic Vibration Chamber
For large and heavy specimens, we provide customised chambers from approximately 3–40 m³, supporting vibration tables from 1,200 × 1,200 mm to 3,000 × 3,000 mm and above.
The system can provide temperatures from -50°C to +150°C, humidity from 10–98% RH, and temperature change rates of 0.1–10 K/min. Lifting, travelling and crane integration can be incorporated for easier loading and unloading.
Typical applications: battery packs, vehicle chassis, powertrain systems and large automotive assemblies.
ED Shaker Integration – Engineering Experience Matters
Integrating an Electrodynamic Shaker (ED Shaker) with a climatic vibration chamber involves more than simply positioning the chamber around the shaker. The chamber, shaker, slip table, lifting mechanism, vibration interface and facility must work together without affecting vibration performance or environmental control.
We understand the challenges involved in ED Shaker and climatic chamber integration, including chamber-to-shaker alignment, vibration isolation, moving interfaces, sealing, cable routing, temperature and humidity control, and access for test specimens.
With our experience in environmental test systems and large-scale projects, Microrel Solution can manage the complete integration process, from system configuration and mechanical interface design to installation, commissioning and on-site technical support.
Flexible Customisation
We can customise the complete system according to your ED shaker, vibration table, specimen size, test profile and facility requirements.
Options include custom chamber dimensions, lifting and travelling systems, crane integration, cable interfaces, special temperature change rates, battery safety protection and customised test fixtures.
Complete Environmental & Vibration Test Solution
At MicroRel Solution, we can provide a complete solution for integrating an ED Shaker with a BIA Climatic Vibration Chamber, including system configuration, mechanical integration, installation, commissioning and on-site technical support.
If you are looking for an Electrodynamic Shaker (ED Shaker) for your vibration testing application, click here to learn more about our ED Shaker solutions.
