Temperature Humidity Chamber

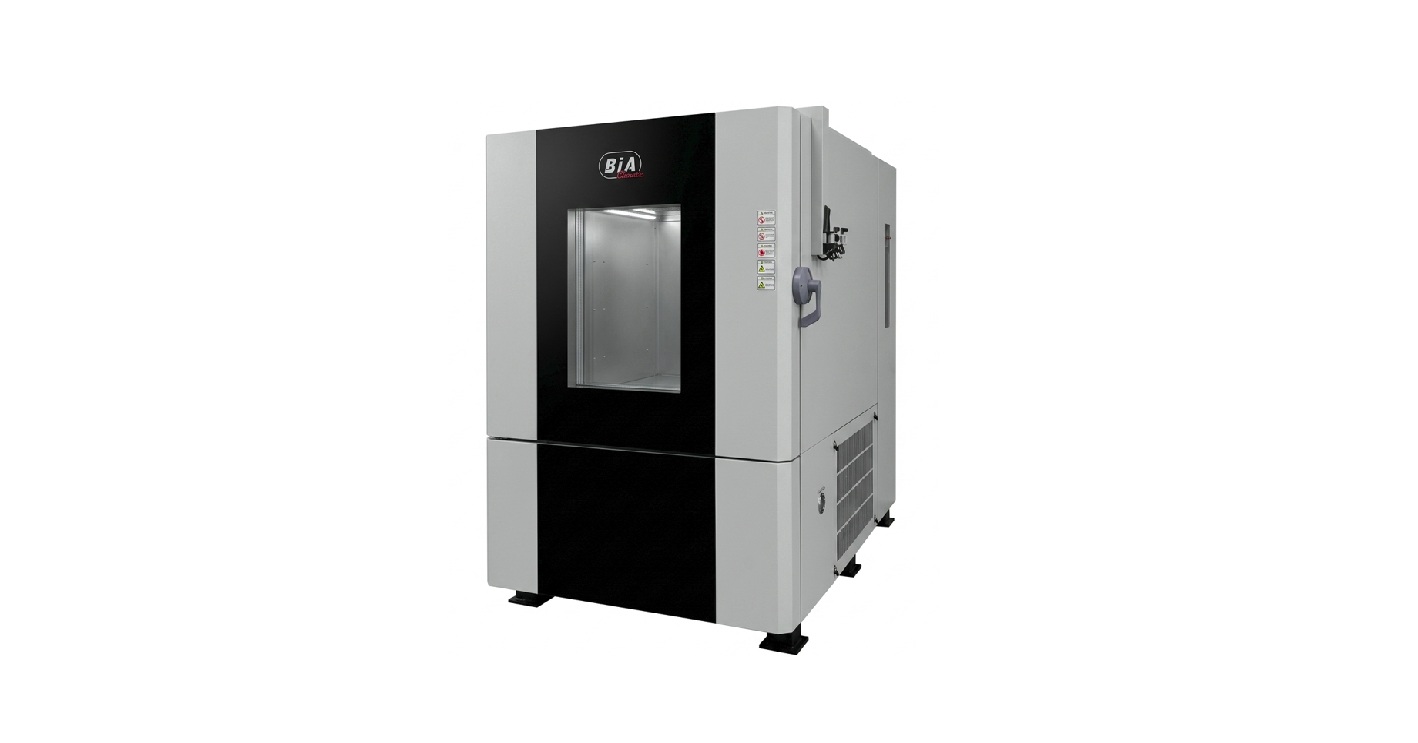

BIA Climatic Temperature & Humidity Chamber
Precise Environmental Control for Reliability Testing
The BIA Climatic Temperature & Humidity Chamber is designed for controlled temperature and humidity testing to evaluate product performance, durability, and reliability under different environmental conditions.
With chamber volumes from 80 L to 2,000 L and temperature ranges available from -70°C to +180°C. BIA Climatic provides flexible solutions for a wide range of environmental and reliability testing requirements.
Key Features
- Temperature range: Up to -70°C to +180°C
- Chamber capacities: 80 L to 2,000 L
- Precise temperature and humidity control
- Stable and uniform test conditions

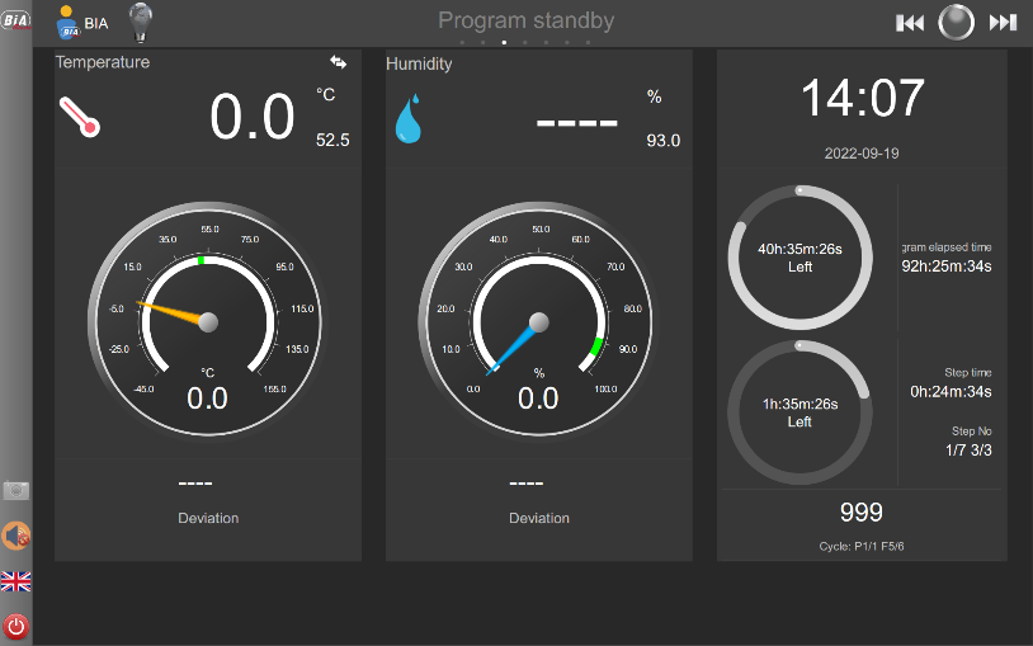

- Programmable temperature and humidity profiles
- Suitable for long-duration reliability testing
- Multiple chamber sizes and configurations available (click here for walk in chamber or customized solution)
| Specification | BIA Climatic Temperature & Humidity Chamber |
| Chamber Volume | 80 L / 150 L / 300 L / 450 L / 650 L / 1,000 L / 1,500 L / 2,000 L |
| Temperature Range | -40°C to +180°C / -70°C to +180°C |
| Control Variable | Temperature & humidity control |
| Test Profiles | Programmable temperature and humidity cycles |
| Applications | Environmental testing, reliability testing, qualification testing |
| Category | Applicable Standards |
| International Standards | IEC 60068 Series – Internationally recognized environmental testing standards:
• IEC 60068-2-1 – Cold Test A • IEC 60068-2-2 – Dry Heat Test B • IEC 60068-2-30 – Damp Heat, Cyclic Test Db • IEC 60068-2-38 – Composite Temperature/Humidity Cyclic Test Z/AD • IEC 60068-2-14 – Change of Temperature Test N • IEC 60068-2-78 – Damp Heat, Steady State Test Cab |
| Road Vehicles | ISO 16750 – Road vehicles – Environmental conditions and testing for electrical and electronic equipment |
| Chinese National & Metrology Standards | GB/T 2423 Series – Chinese national standards corresponding to the IEC 60068 environmental testing series
GB/T 5170 Series – Inspection methods for environmental testing equipment for electrical and electronic products |
| Military Standards | GJB 150.1A / 3A / 4A / 5A / 9A – Laboratory environmental tests for military equipment
MIL-STD-810H – U.S. Department of Defense Standard for Environmental Engineering Considerations and Laboratory Tests |
| Automotive OEM Standards | VW 80000, PV 1200, PV 2005, BMW PR 303.5, BMW PR 308.2, MBN 5555-4, and other climate and environmental cycling test requirements specified by Volkswagen, BMW, Mercedes-Benz and other automotive manufacturers. |
Applications
Suitable for semiconductor, electronics, automotive, aerospace, battery, and industrial product testing, including temperature cycling, humidity testing, environmental qualification, and reliability testing.

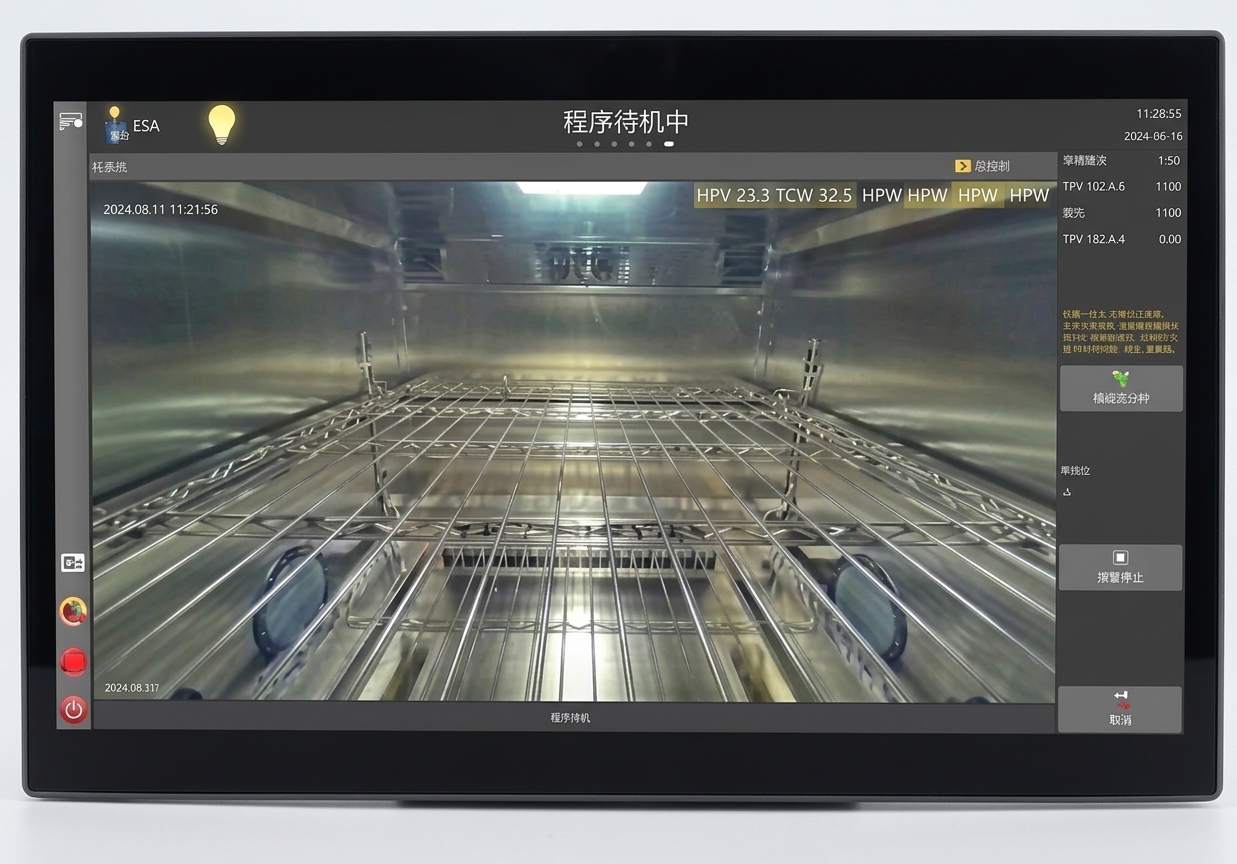

Integrated IP Camera for Remote Test Monitoring (Optional)
The BIA Climatic chamber can be equipped with an integrated IP camera for visual monitoring of the test specimen during environmental testing. The camera allows users to remotely observe the product inside the chamber and monitor changes during temperature and humidity tests, providing additional visibility without interrupting the test program.
Water-Cooled System for Stable Operation (Optional)
For applications requiring continuous and demanding environmental testing, water-cooled configurations are available. The water-cooled system provides efficient heat rejection and can help maintain stable chamber operation, making it suitable for laboratories where air-cooled systems may be less practical due to ambient conditions, installation space, or heat dissipation requirements.
BIA Climatic – Southeast Asia
We are the official distributor of BIA Climatic in Southeast Asia, providing local application support, installation, commissioning, validation, maintenance, and after-sales service.
Need a temperature & humidity chamber for your reliability testing?
Contact us now to discuss your required chamber volume, temperature range, humidity conditions, and test profile.
